MSX-Audio/OPL1/2/3 Modular Sound Cartridge

🎬 Watch the Demo Video: MSX OPL Sound Cartridge Demo on YouTube

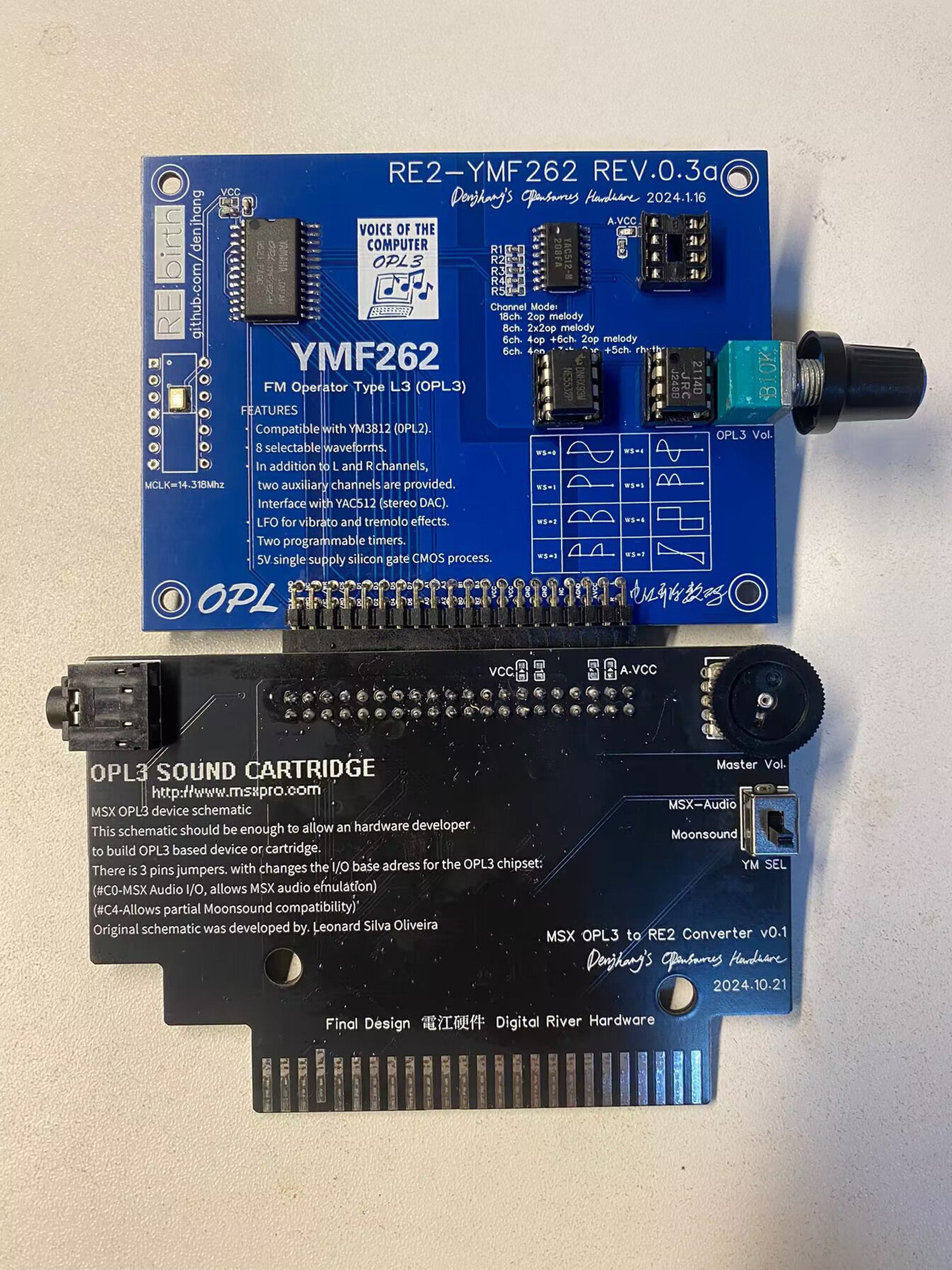

What is it?

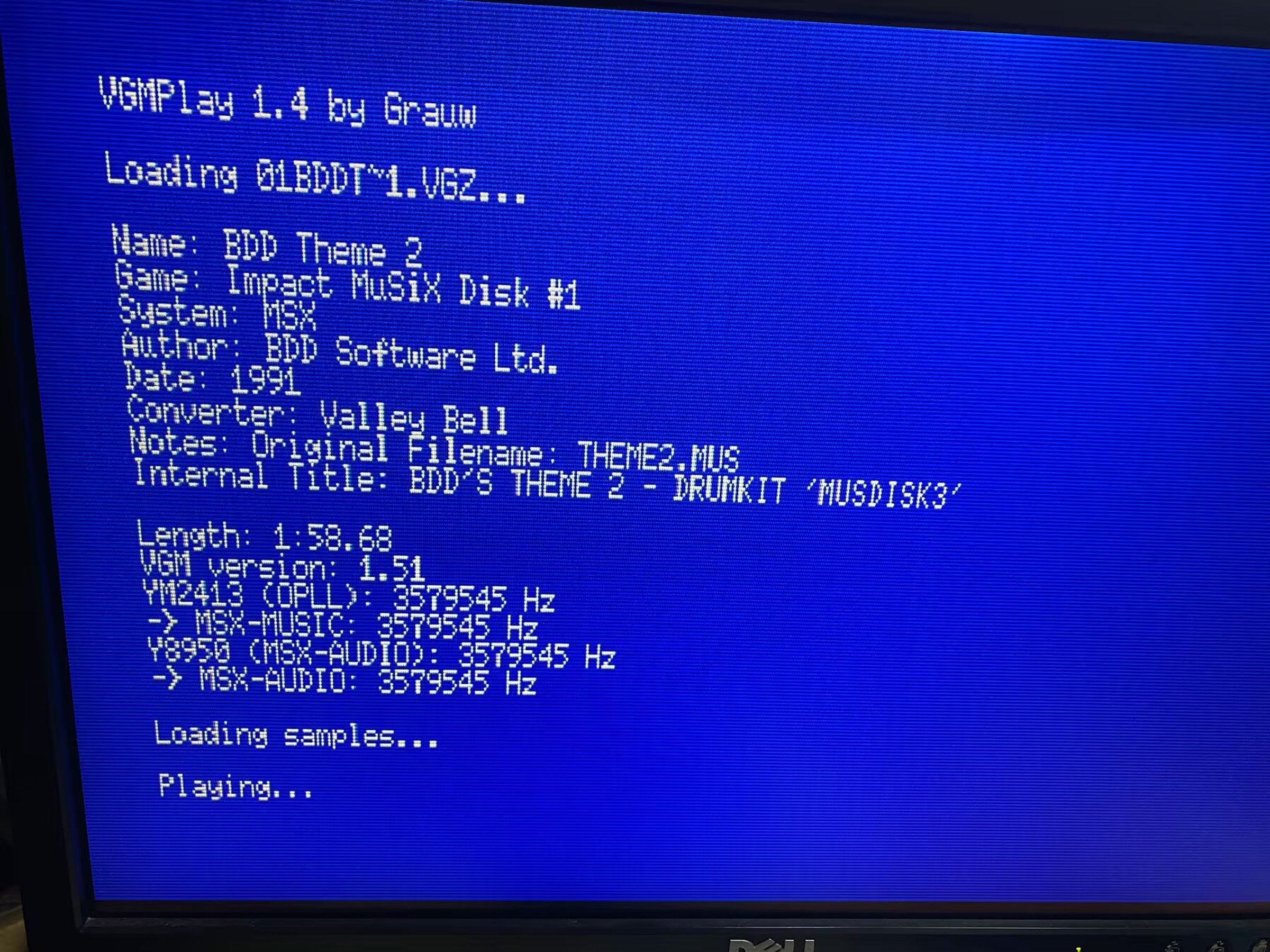

The world's first publicly available modular MSX sound card, fully supporting Y8950, YM3526, YM3812, YMF262, YMF289 (MSX-Audio, OPL1, OPL2, OPL3, OPL3-L). Runs correctly under MSXVGMPlay.

Uses only a single 5V power supply (no ±12V), compatible with all MSX including clones and single-chip MSX systems. Requires MSX-DOS2 or above and extended memory for VGMPlay.

Supported Chip Variants

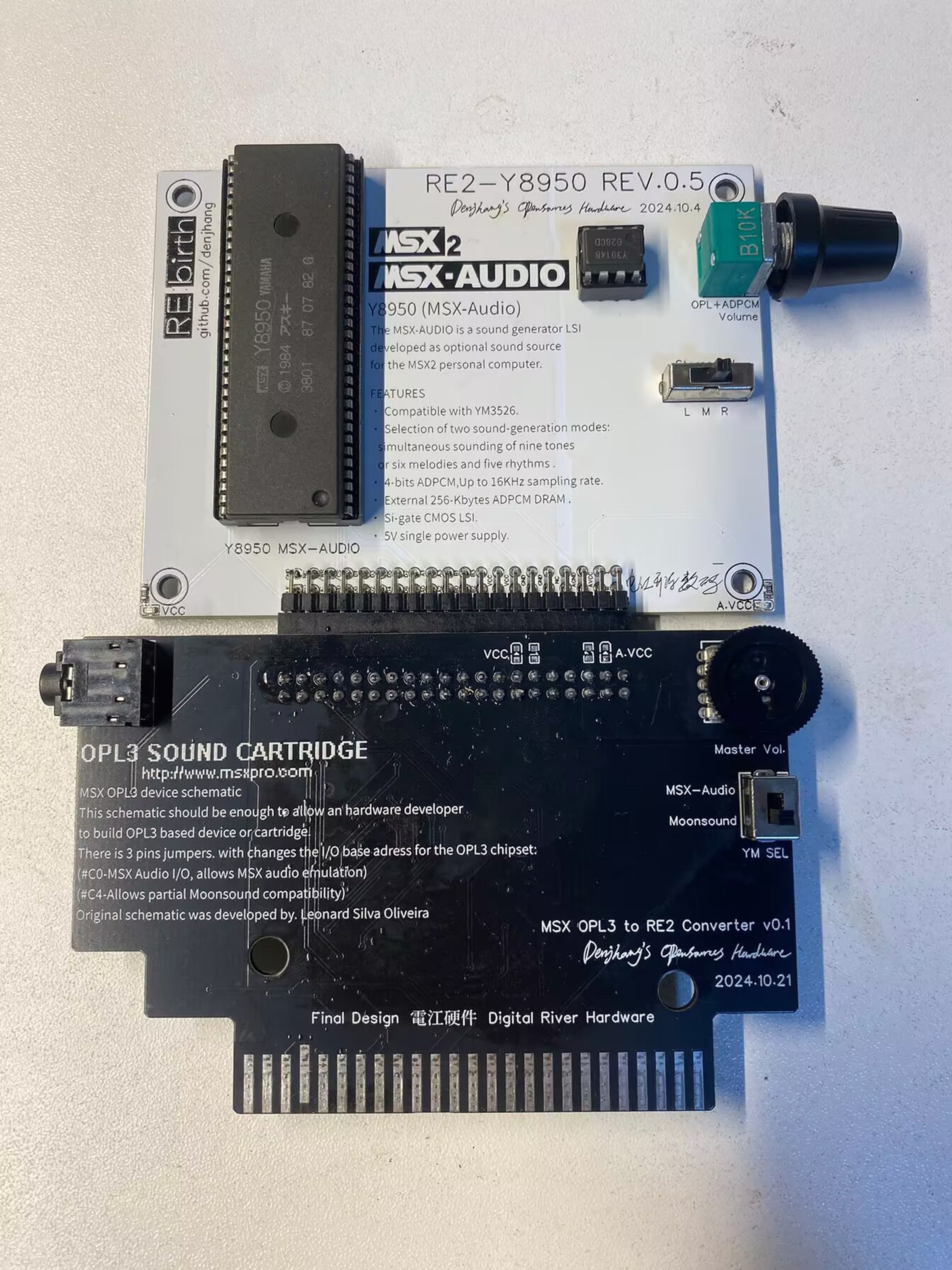

• RE2-Y8950 — MSX-Audio (with ADPCM support in VGMPlay)
• RE2-YM3526 — OPL1

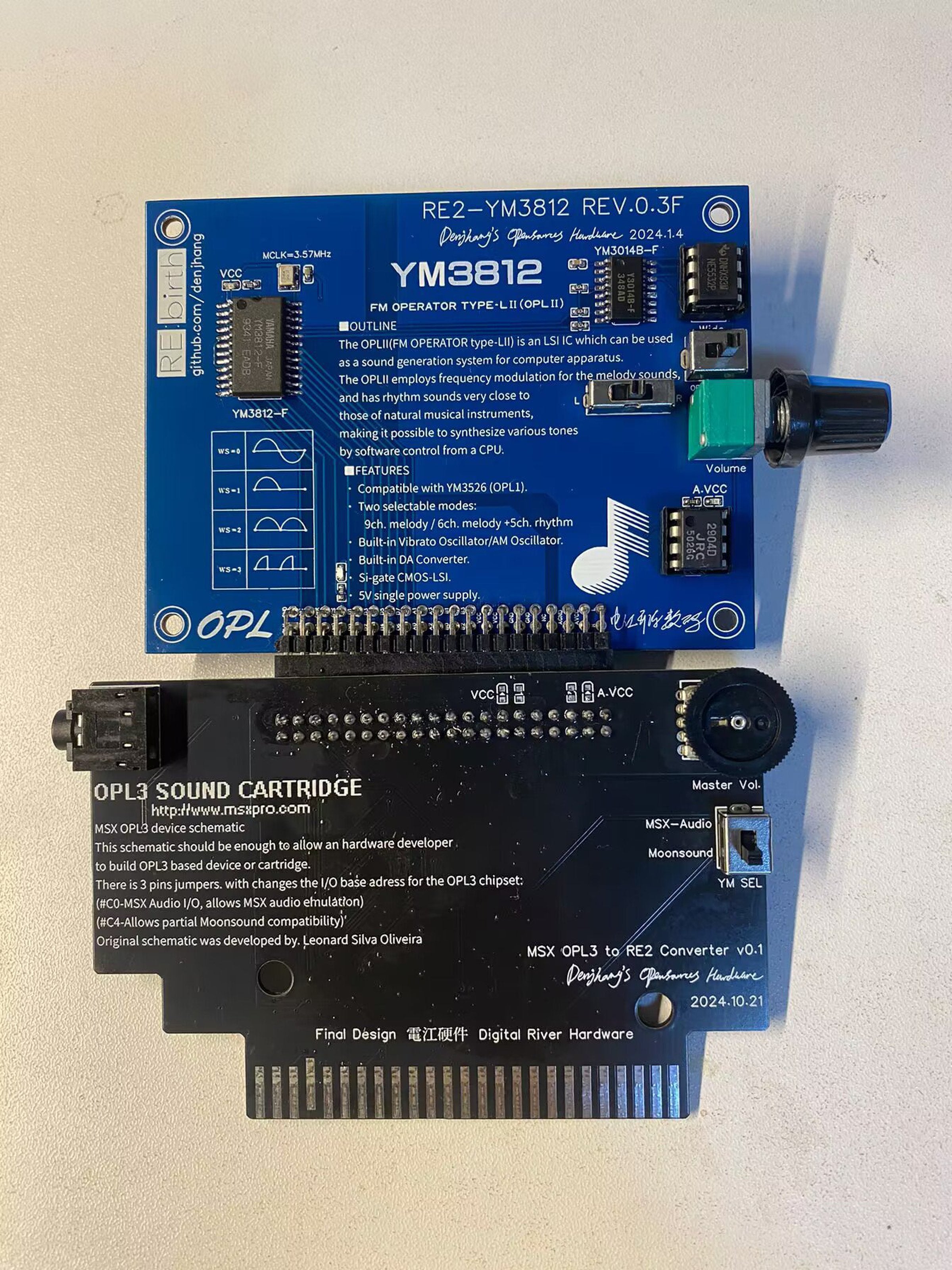

• RE2-YM3812 — OPL2

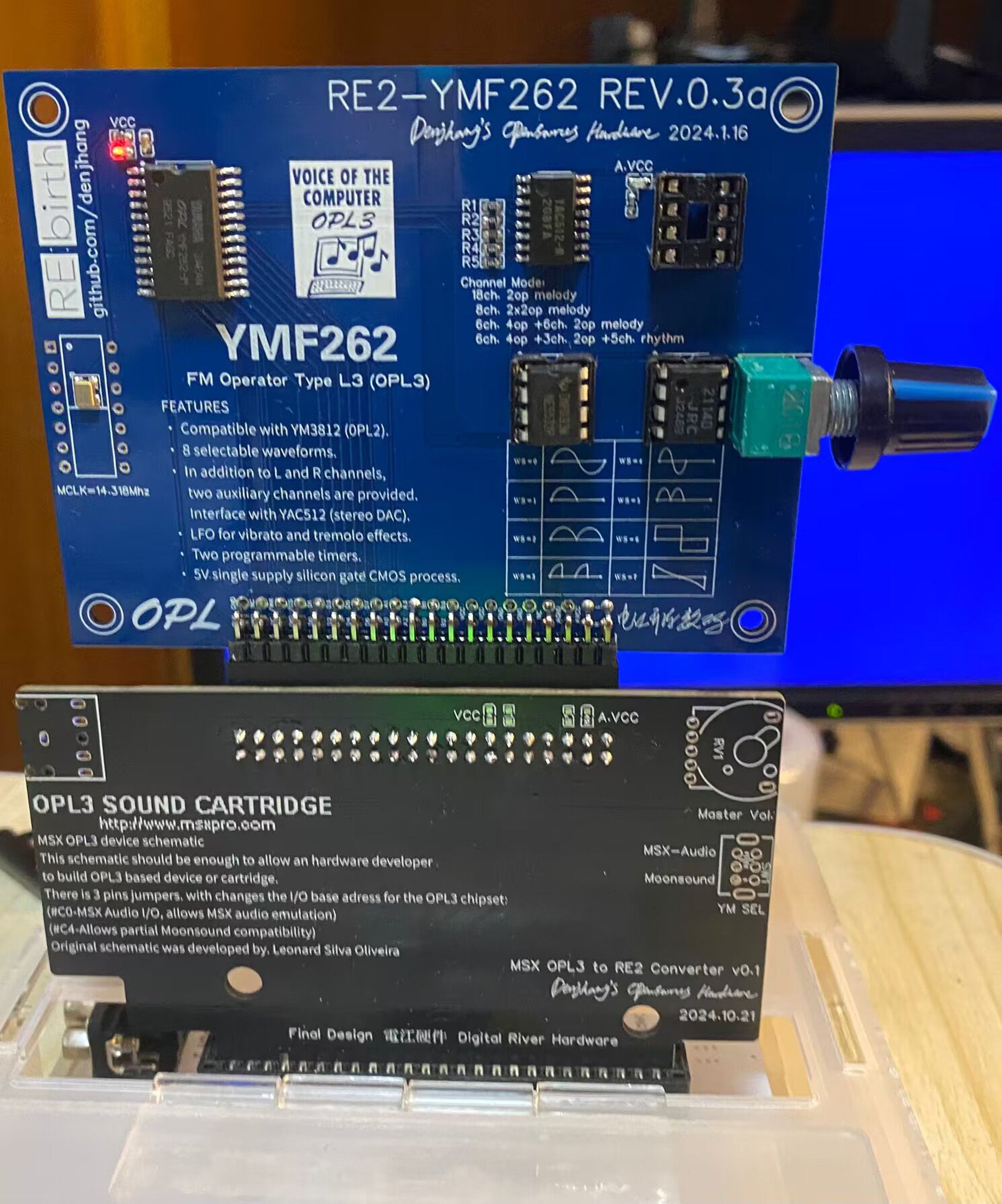

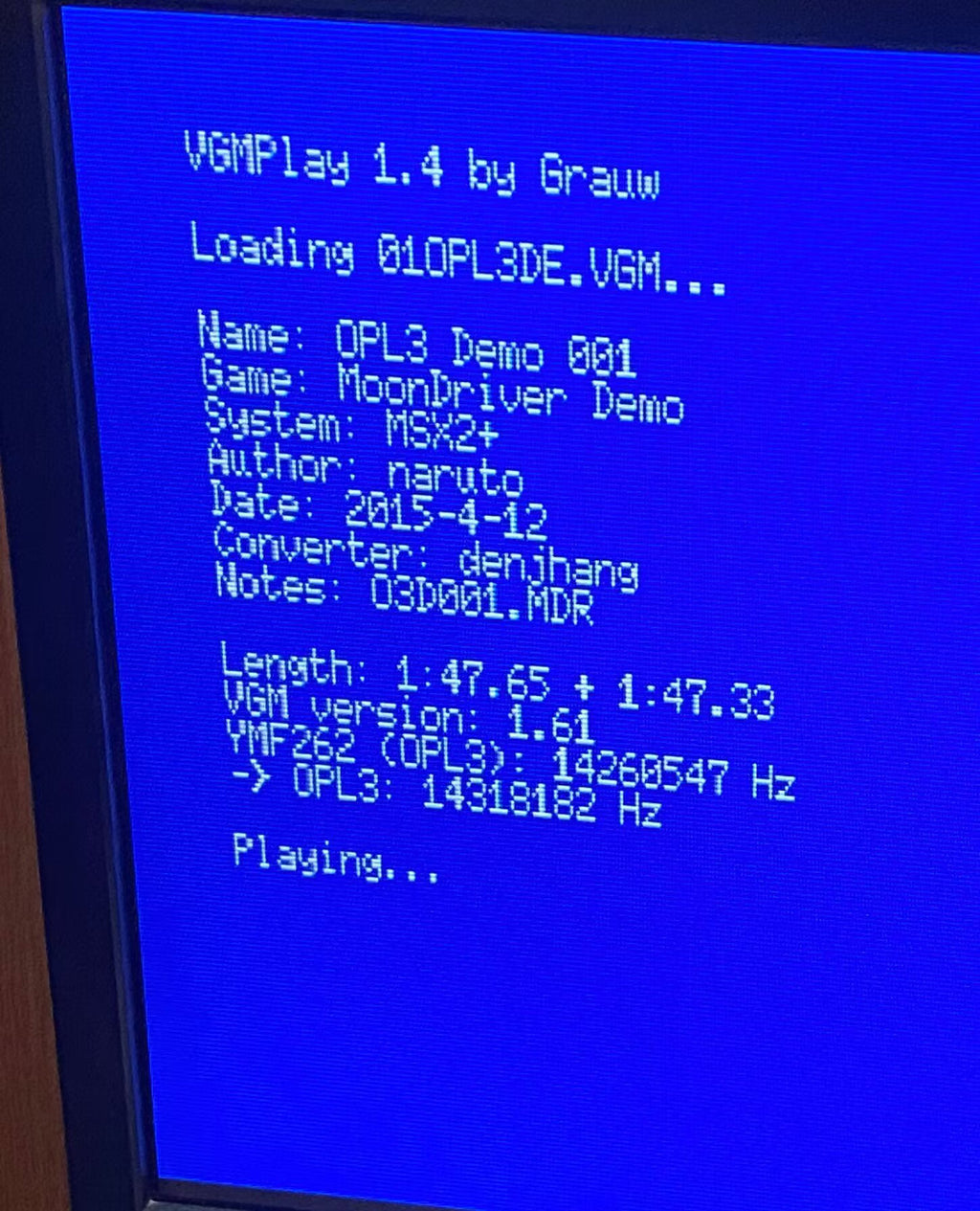

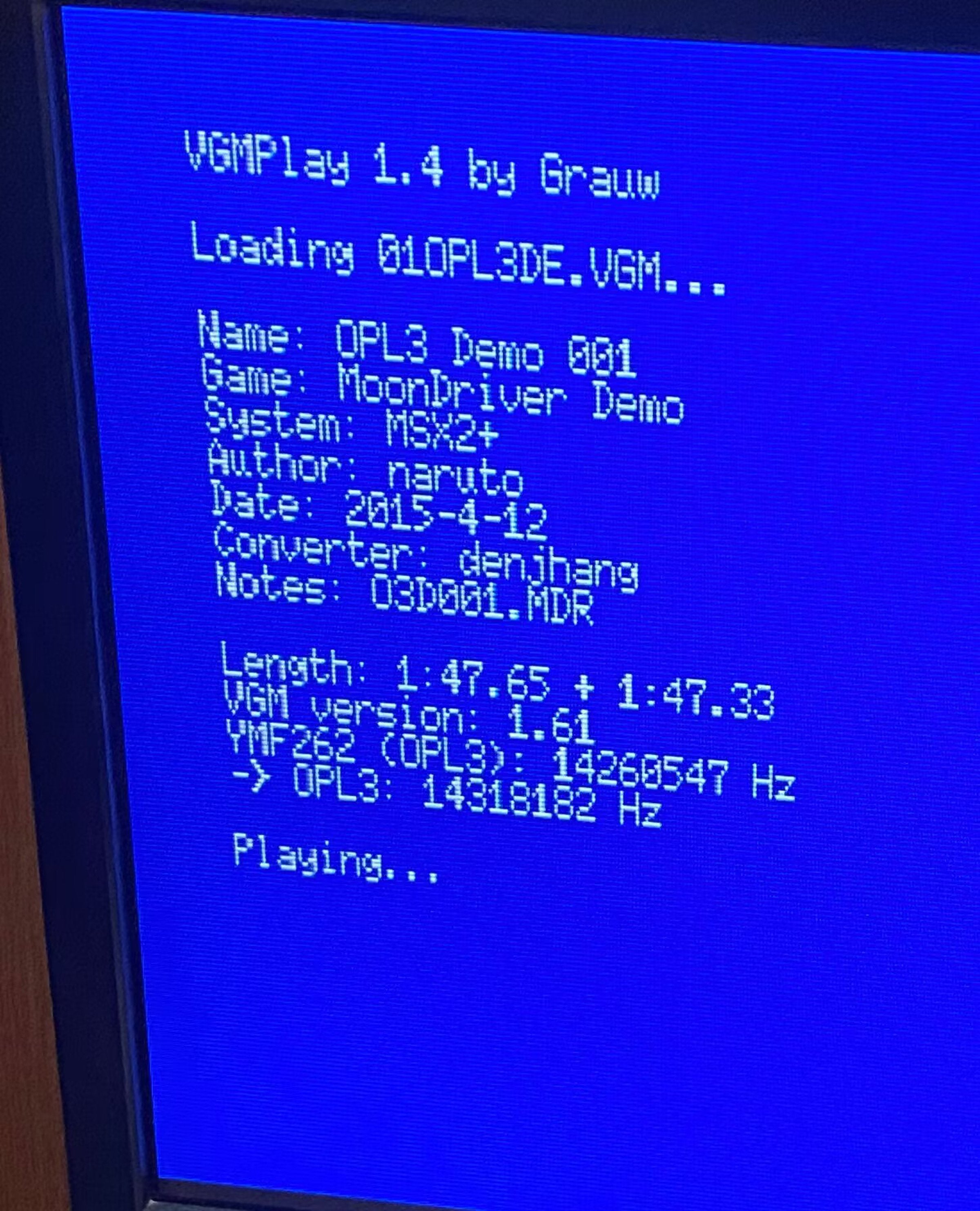

• RE2-YMF262 — OPL3

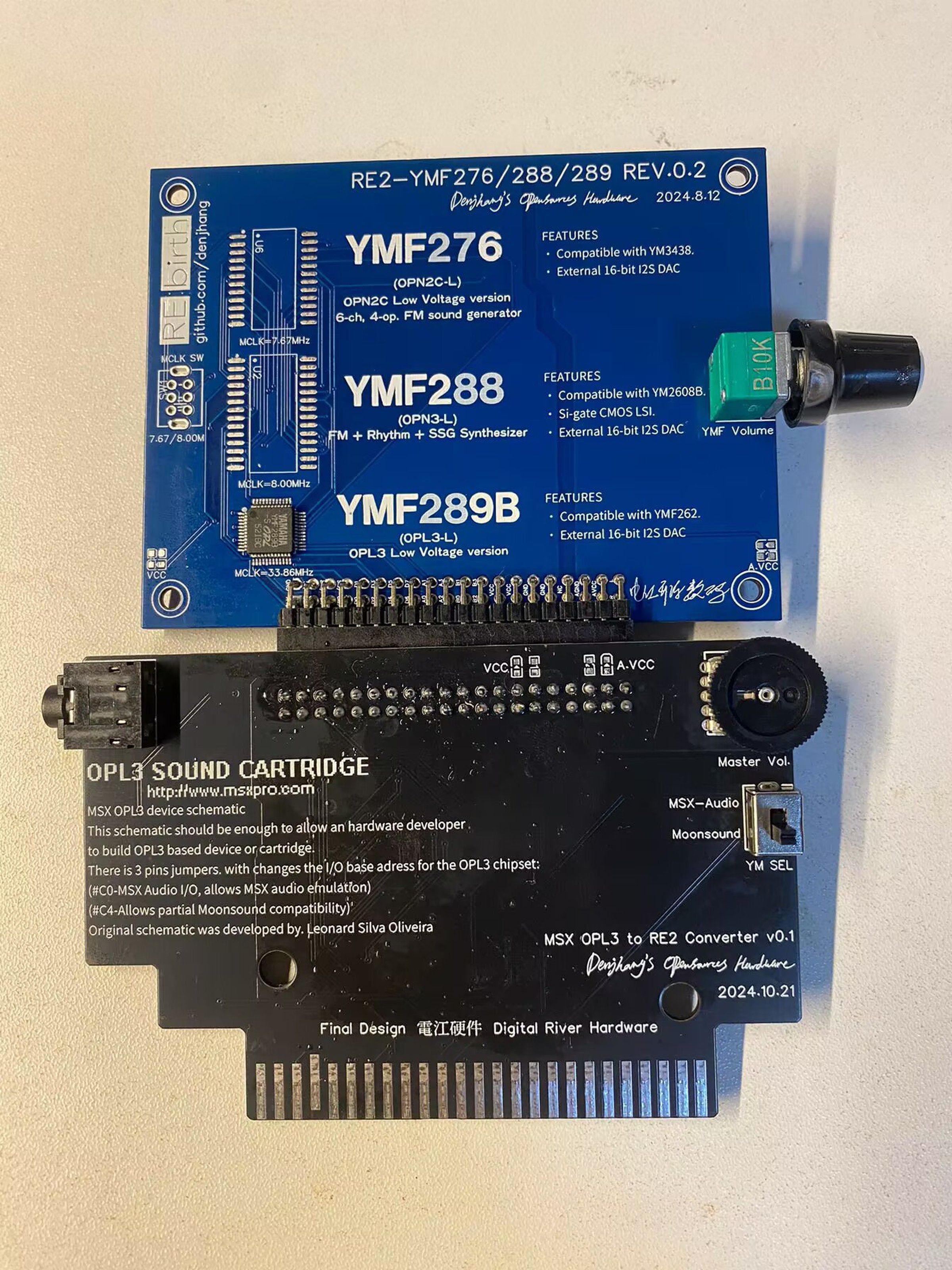

• RE2-YMF289 — OPL3-L
• 2xOPL1 / 2xOPL2 — dual chip configurations

What makes it special?

• Modular design based on open-source Project RE:Birth 2nd
• MSX-to-RE2 conversion cartridge with MSX-Audio and Moonsound compatible circuit (designed by Leo)
• Compatible with MSX1/2/2+, 1ChipMSX, SM-X
• Real Yamaha sound chips — authentic OPL audio
• Stable supply of Y8950, YM3812, YMF262 and more

Compatibility Notes

• For 1ChipMSX clones: use VGMPlay v1.2 (v1.3/1.4 have timer issues with OPL2/3)
• Likely not compatible with MSX TurboR (Panasonic A1-ST / A1-GT)
• Tested and working on MSX1/2/2+, 1ChipMSX, SM-X

External Links

• GitHub: RE2-Y8950
• GitHub: RE2-YMF276-288-289
• MSXPro: OPL3 Reference
